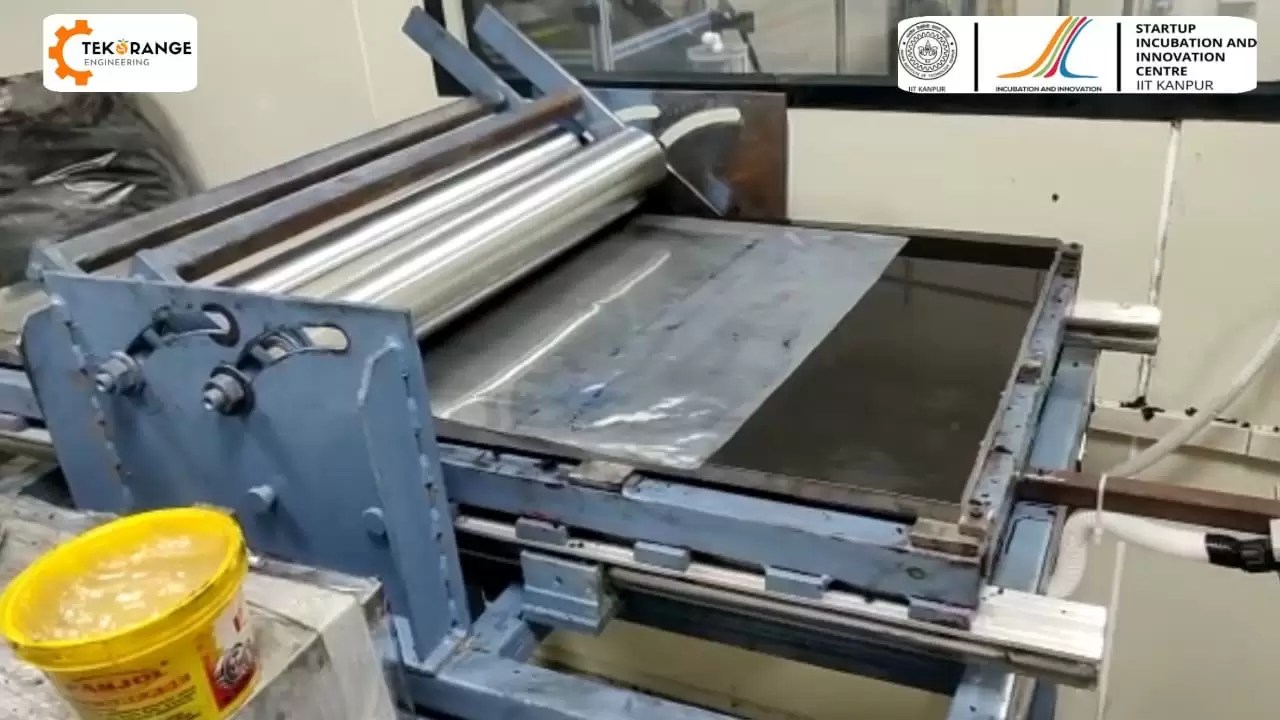

Cathode sheet rolling

Cathode, anode are rolled in perfect thickness to achieve calculated charge capacity. so these machine must have

a. High in rigidity

b. Holding gap tolerance at time of rolling

c. Straightness and parallelism in both roller

d. Roll material compatibility with sheet chemical

e. Contamination proof in sheets

f. Safety of operator

If machine hold above quality then sheet will be  Perfect in thickness ,desirable surface texture .

Machine specs are as follow –

Roller dia

<150 mm

Roler width

<300mm

Working width

<200mm

MOC

Ss,ms crome plated

Bearing

Double roll

Asymmetric rolling

Yes possible

Roller orientation

Horizontal / vertical

Roller RPM

5<rpm<30(VFD drive )

Operator panel

HMI

Power supply

5 kw ,three phase

Frame

Ms powder coated frame

Tolerance clas

Iso 7-10
